The first version of the design hit the mark but it looked a little static. Someone suggested rotating the anchor and this necessitated a change to the scroll. Then the design was deemed production ready.
I imported the design into EnRoute and did a quick trace of thee main elements primarily to establish scale and proportions. I didn't have to be fussy as I was going to redraw everything anyways.
Using that original trace drawing as a guide I did a cleaner version.
Peter produced this version of the anchor vectors. The lower anchor portion was duplicated, mirrored and then combined.
At this point Peter designed the fancy little plasma cut bracket we would insert into the cut Precision Board pieces. It is one more level of detail that would help take this sign over the top when we were done.
The compass star is an element that needs a little explanation. If you make a star shape and then use the bevel tool to create a relief you get a funny shaped bevel. The higher the bevel the more pronounced this shape becomes. The image on the right is that shape. To get a true compass star the points are build individually and then combined. This is the method we used.
I then selected the snap to intersection and drew out the compass points. When I was done I deleted the rectangles and grouped each star point with the intersecting lines.
I then rotated each point in 45 degree increments.
Each segment was then ungrouped and the lines were deleted.
The ring around the compass star would be plasma cut from 1/8" steel plate. To build this vector I created a circle and then used the offset tool to create the inner circles. I then built double lines, duplicated and rotated them to form the segments. I then used the jigsaw tool to create the many rounded segments. Once I had all of the vector pieces formed I deleted the double lines and inner circles to leave the lines I needed. I then used the transform/distort/noise distortion tool to make the lines a little distorted. This will instant age to the cut pieces.
I then created a slightly larger offset of the compass rose and combined this with the segmented circle vector.
We opted to route the scroll in layers and then assemble them later with a little hand work to finish things off. It was a simple matter to build the pieces of the scroll using the draw tools in EnRoute. We then imported the lettering vectors. I used the transform/distort tool/warp tool to shape the letters to the scroll.
The vectors were now complete and we were ready to begin building the reliefs.
First up was the compass star. Peter used the bevel tool to create the star segments. He then combined them to form one relief. As an added level of detail he added a custom texture bitmap to the centres of each segment.
The banner was next up. The banner was built as flat reliefs which were then modified using various ovals. The lettering was subtracted from the base banner relief. It automatically followed the shape of the domed banner.
Peter opted to use the chamfer tool to modify the flat relief of the anchor bits. This created an interesting profile.
The triangle shaped ends of the anchor were created as a flat relief and then modified using the dome tool and a circle around them as a mask. The top ring was also created using the dome tool.

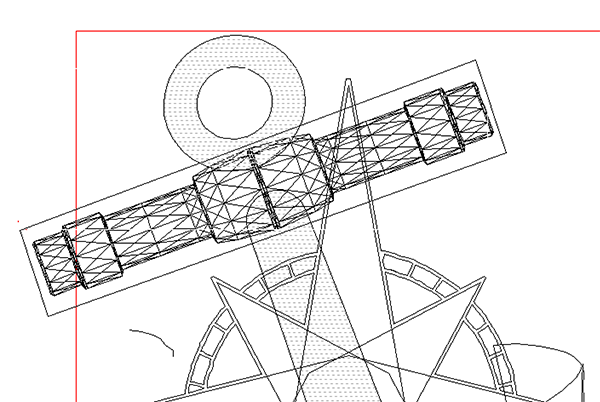

The top crossbar of the anchor was created as a mesh. This allowed us to build a complicated shape in one go. We used the revolve function.
The mesh was merged to a zero height relief.
This finished off the building of all of the files we needed for this sign. Next time I'll show the process of building and assembling everything. Stay tuned...
