It is hard to believe that it was almost ten years ago I witnessed a CNC router in action for the very first time. I was fascinated and simply had to have one! Although I had been in the creative end of the three dimensional sign business for most of my life I didn't really know what I would do with one of these machines - but I just knew it could do fantastic stuff.

Along with the CNC router I discovered the wonderful material called Precision Board and the glues, primers and other companion products they offer. Since then we have gone through many tons of the material using it in most signs and projects we tackle. This journal will chronicle our many adventures both past, present and future. I'll talk from the perspective of someone who pushes these products to the creative limit on a daily basis. I'll be adding to the stories two or three times each week. -dan

Saturday, September 17, 2011

Workshop name tags 3

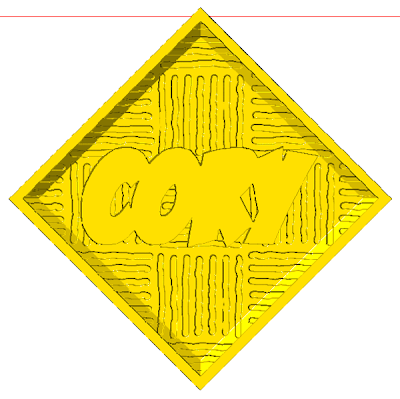

Cory's name plaque  was to be a diamond shape. The vertical and horizontal lines play off this shape and a comic font offsets the squareness of the diamond. It uses a bitmap from my TEXTURE MAGIC collection called checkerboard squiggles.

The border of the panel is a basic flat relief. Then I modified this relief by using the bevel tool, but I set the perimeters to limit to the height.

Then I imported the bitmap, enlarged and entered it on the panel.

The letter outline was created as a separate relief, adjusted vertically and then merged highest to the plaque.

The lettering was the last element to be added. It is a bevel with a base height of 0.15". As quick as that the file was ready for tool pathing.
